Rotary Joint

Home - Products

big2022481016557060

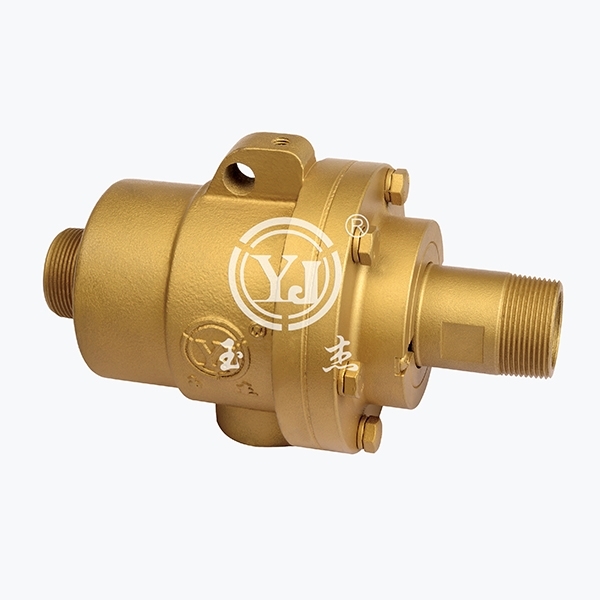

MXQ3 Rotary Joint

Model£º£º£ºMXQ3
Outer pipe£º£º£º Thread connection or flange connection
Feature£º£º£ºConvex or concave spherical seal; Standard antimony impregnated graphite or carbon graphite sealing technology; Double widely spaced graphite bearing support; Precision cast iron shell; Dual-flow design; Preventive maintenance design wiht sealing abrasion scale line; Surface treatment of the rotating shaft for abrasion resistance and corrosion resistance; Automatic centering.

Technical Parameter£º£º£º
Media Steam¡¢¡¢¡¢Hot oil
Max.Temperature ¡Ü350¡æ (Hot oil)£»£»£»¡Ü220¡æ (Steam)
Max.Pressure ¡Ü1.8MPa
Max.Speed ¡Ü200rpm


Product consultation Back to list

Sales Service Hotline£º£º£º

0595-8686 1188

Ê×Ò³|CA88ÓÎÏ·¹Ù·½ÍøÕ¾

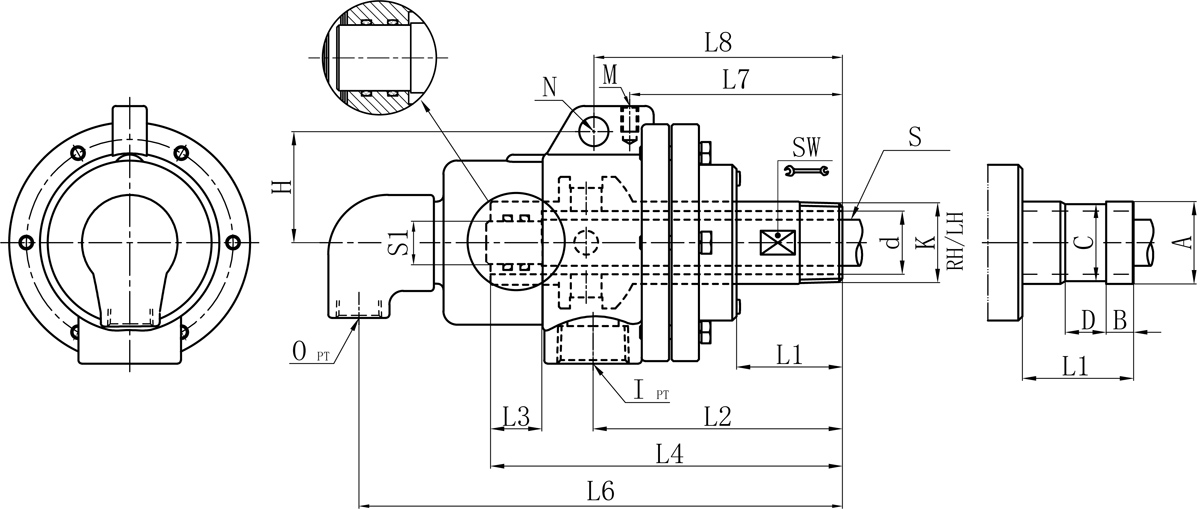

RN

Model K I O S1 d L1 L2 L3 L4 L6 L7 L8 M N H SW Flange outer tube size control table
A B C D
32A R1-1/4" Rc1" Rc1/2" 20 30 51 122 30 184 238 108 139 M10 14 60 41 40 13 38 20
40A R1-1/2" Rc1-1/4" Rc3/4" 25 36 62 143 35 200 278 133 149 M10 16 71 45 47.8 13 45 20

We offer customized products if special sizes.
Specifications are subject to change without notice.

Ê×Ò³|CA88ÓÎÏ·¹Ù·½ÍøÕ¾

RT

Model K I O S d L1 L2 L3 L4 L6 L7 L8 M N H SW Flange outer tube size control table
A B C D
32A R1-1/4" Rc1" Rc1/2" Rp1/2" 30 51 122 30 184 238 108 124 M10 14 60 41 40 13 38 20
40A R1-1/2" Rc1-1/4" Rc3/4" Rp3/4" 36 62 143 35 200 278 133 149 M10 16 71 45 47.8 13 45 20

We offer customized products if special sizes.
Specifications are subject to change without notice.
